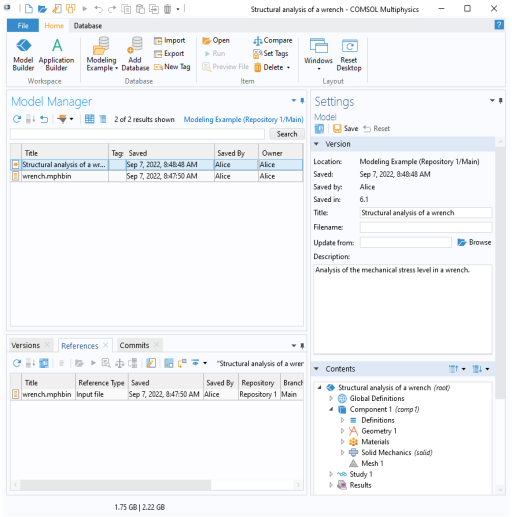

) button in the Workspace section of the Home toolbar in Model Builder to open The Model Manager Workspace — a workspace in the COMSOL Desktop dedicated to database-specific tasks. The COMSOL Desktop switches to display the toolbar for the Model Manager, as well as opens windows belonging to the workspace. You will find the latest versions of your model and CAD file in The Model Manager Window.
|
•
|
Select the model and expand the model tree in the The Contents Section of The Settings Window. You will find that you can browse the content of a model without opening it.
|
|
•
|
Search for your model by applying various Item and Content Filters, for example, a Physics filter on a Solid Mechanics interface (
 ), or a Parameter filter for the applied force of 150[N]. |
|
•
|
Right-click the model and select References (
 ) to see the database relationship between the model and the CAD file in The References Window. |
|
•
|
Right-click the CAD file and select Versions (
 ) to see all versions of the file — currently only one — in The Versions Window. |
|
•
|
Right-click the model and select Commits (
 ) to open The Commits Window. Double-click the third table row from the top. You will see details on the commit in which a new version of the original model was saved from your draft, and the draft itself was deleted. |
