The Model Builder Context Menu
In addition to adding mesh operations and attributes from The Mesh Toolbar and The Graphics Context Menu, right-click a node in the Model Builder to open a context menu. Depending on the selected node, the menu will contain Meshing Operations and Attributes that you can choose. The type of meshing sequence also influences the content in the menus. Figure 8-9 shows the context menu when clicking the Mesh node.

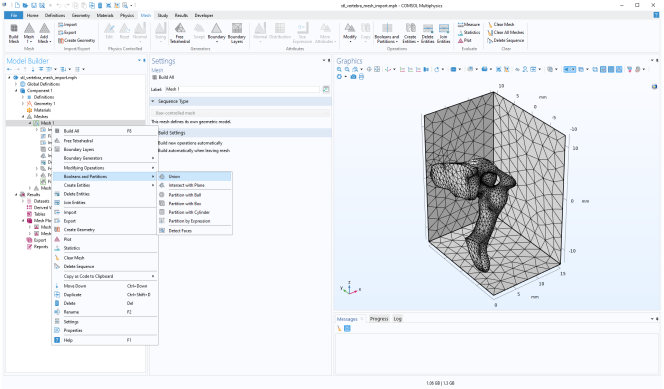

Figure 8-9: The Model Builder context menu when clicking the Mesh node.
